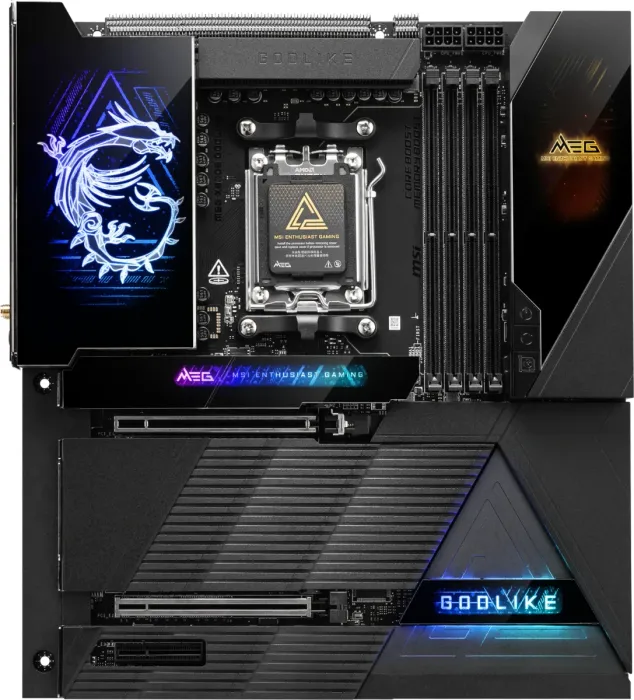

MSI MEG X870E Godlike Motherboard
In stock
SKU
X87EGODLIKE
| Full technical specification | |
|---|---|
| Chipset | AMD X870E |
| Part Number | X87EGODLIKE |
| Interfaces & Connections | 2x USB4 with DisplayPort 1.4 (40Gb/s, ASMedia ASM4242, iGPU), 5x USB-C 3.1 (10Gb/s), 8x USB-A 3.1 (10Gb/s), 1x RJ-45 5Gb LAN (Realtek RTL8126CG), 1x RJ-45 10Gb LAN (Marvell AQtion AQC113CS), 1x toslink S/PDIF Out (Realtek ALC4082), 2x 3.5mm jack (Real |
| Expansion Slots Total | 2x PCIe 5.0 x16 (1x x16, 1x x8) [x16/x0 or x8/x8], 1x PCIe 4.0 x16 (x4) |
| Networking Type | Wi-Fi 7 (WLAN 802.11a/b/g/n/ac/ax/be, 2x2), Bluetooth 5.4 | 1x Marvell AQC113CS 10Gbps LAN 1x Realtek 8126 5Gbps LAN |
| Audio | Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| RAM Max Size | 256 |
| Service & Support Type | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JED |
| Features | OC Mobo for tweaking, audio+solid capacitors, I/O-shield integrated, Backplate, voltage measurement points, display, 5x M.2-passive cooler |
| RAM Type | DDR5 |
| Socket | AM5 |
| Motherboard Form Factor | E-ATX |
| Free Shipping | No |
