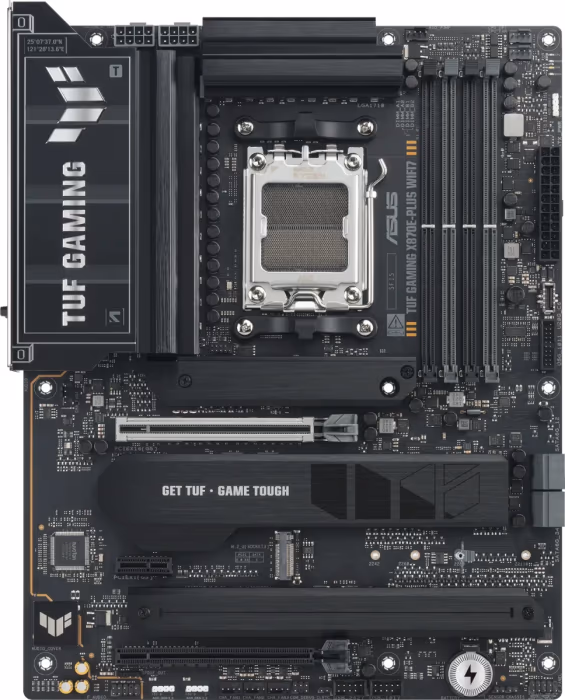

ASUS TUF Gaming X870E-Plus WIFI7 Motherboard
Out of stock
SKU
TUF GAMING X870E-PLUS WIFI7
| Full technical specification | |
|---|---|
| Chipset | AMD X870E |
| Part Number | TUF GAMING X870E-PLUS WIFI7 |
| Interfaces & Connections | 1x HDMI 2.1 (iGPU), 2x USB4 with DisplayPort 1.4a (40Gb/s, PD-Out 15W, iGPU), 3x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 3x 3.5mm jack (Realtek ALC1220P), 1x RJ-45 (2.5GBase-T, Realtek), 2x antenna |
| Expansion Slots Total | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1 |
| Networking Type | Wi-Fi 7 (WLAN 802.11a/b/g/n/ac/ax/be, 2x2, Realtek RTL8922AE), Bluetooth 5.4 | Realtek (2.5Gb/s) |
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio |
| RAM Max Size | 256 |
| Service & Support Type | 4x DDR5 DIMM, Dual Channel, UDIMM (Non-ECC+ECC), max. 256GB max. DDR5-8000 |
| Features | Sept 2025 released, audio+solid capacitors, Diagnostic LED (LED indicators), I/O-shield integrated, 4x M.2-passive cooler |
| RAM Type | DDR5 |
| Socket | AM5 |
| Motherboard Form Factor | ATX |
| Free Shipping | No |
