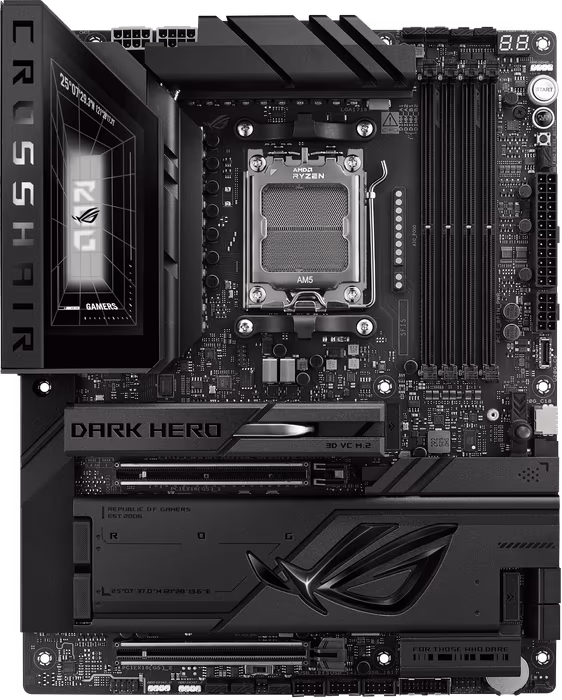

ASUS ROG Crosshair X870E Dark Hero Motherboard
In stock
SKU
ROG CROSSHAIR X870E DARK HERO
| Full technical specification | |
|---|---|
| Chipset | AMD X870E |
| Part Number | ROG CROSSHAIR X870E DARK HERO |
| Interfaces & Connections | 1x HDMI 2.1 (iGPU), 2x USB4 with DisplayPort 1.4a (40Gb/s, iGPU), 3x USB-C 3.1 (10Gb/s), 6x USB-A 3.1 (10Gb/s), 1x Toslink S/PDIF Out (Realtek ALC4082), 2x 3.5mm jack (Realtek ALC4082), 1x RJ-45 (5GBase-T, Realtek), 1x RJ-45 (10GBase-T, Realtek), 2x |
| Expansion Slots Total | 2x PCIe 5.0 x16 (1x x16, 1x x8) [x16/x0 or x8/x8] |
| Networking Type | Wi-Fi 7 (MediaTek MT7927) 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth Bluetooth v5.4 (suppport LE Audio) | 1 x Realtek 10Gb Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 |
| RAM Max Size | 256 |
| Service & Support Type | 4x DDR5 DIMM slots, dual channel, max. 256GB UDIMM Non-ECC+ECC | DDR5-5600 (Ryzen 9000), max. DDR5-9600 OC |
| Features | Audio+solid capacitors, Diagnostic LED (LED indicators), Diagnostic LED (segment display), Integrated I/O panel, Backplate, 5x M.2 passive heatsinks |
| RAM Type | DDR5 |
| Socket | AM5 |
| Motherboard Form Factor | ATX |
| Free Shipping | No |
