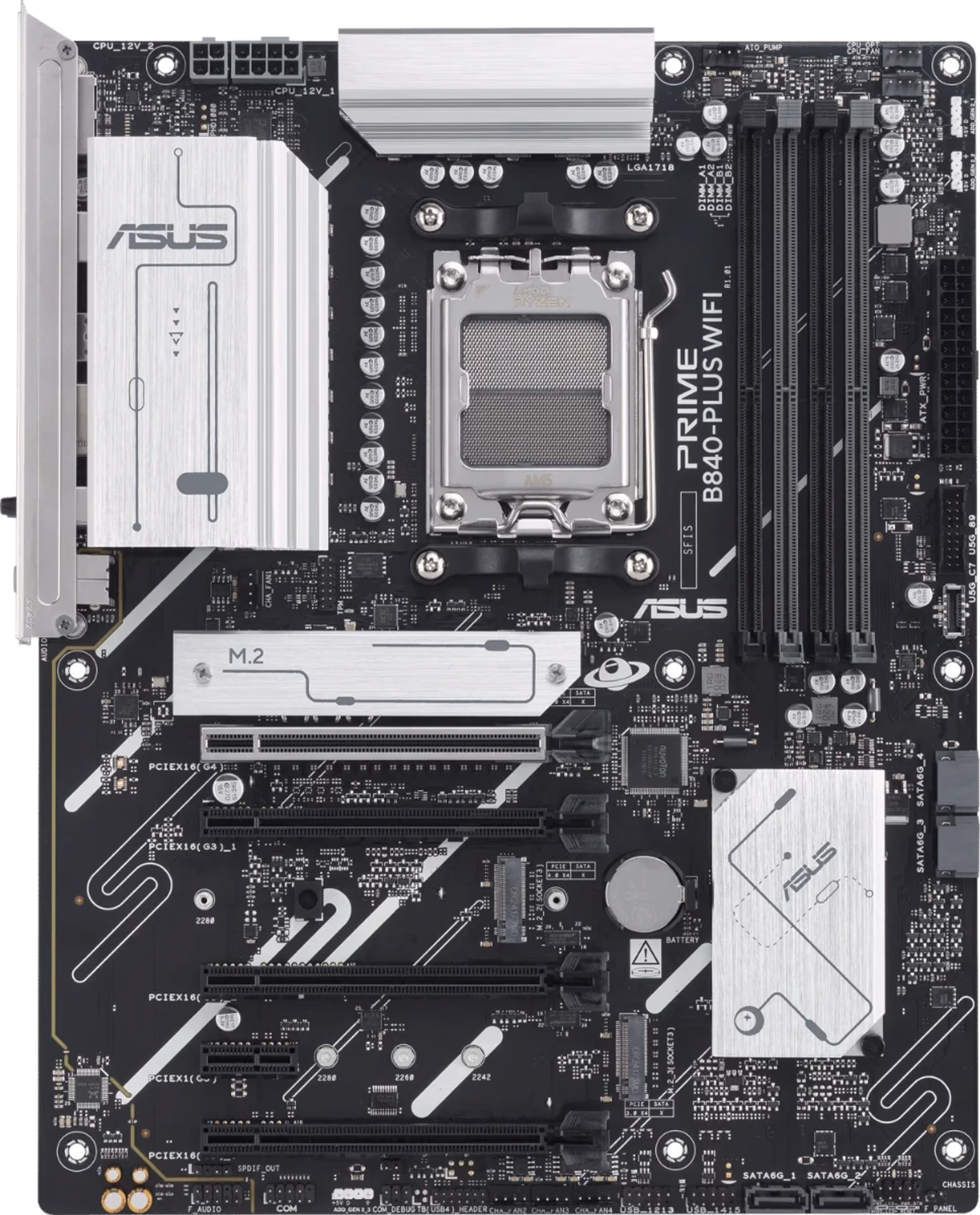

ASUS Prime B840-Plus WIFI Motherboard
In stock
SKU
PRIME B840-PLUS WIFI
B840-PLUS WIFI
ASUS Prime series motherboards are expertly designed to unleash the full potential of AMD Ryzen ™ 9000 series processors. The PRIME B840-PLUS WIFI motherboard offers users and PC DIY builders a range of performance optimizations through intuitive software and firmware features. Designed as "Advanced AI PC-ready," it provides the necessary performance and connectivity for demanding AI applications.
Improved DDR5 performance
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME B840-PLUS WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.1
For entry-level modules without EXPO ™ support, the ASUS Enhanced Memory Profile (AEMP) automatically detects the memory chips and offers optimized profiles for improved performance.
For those who want to exceed standard DDR5 speeds, the PRIME B840-PLUS WIFI offers extensive AMD Extended Profiles for Overclocking (EXPO).™) Support and a wide range of UEFI settings for further performance improvements.
| Full technical specification | |
|---|---|
| Chipset | AMD B840 |
| Part Number | PRIME B840-PLUS WIFI |
| Interfaces & Connections | 1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.1 (10Gb/s, PD-Out 15W), 1x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 3x 3.5mm jack (Realtek), 1x RJ-45 (2.5GBase-T, Realtek), 2x Quick Connect antenna |
| Expansion Slots Total | 1x PCIe 4.0 x16, 3x PCIe 3.0 x16 (1x x4, 2x x1), 1x PCIe 3.0 x1 |
| Networking Type | Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, AMD RZ616 [MediaTek MT7922]), Bluetooth 5.3 | 1 x Realtek 2.5Gb Ethernet |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| RAM Max Size | 256 |
| Service & Support Type | 4x DDR5 DIMM, 2 channels (Dual Channel), UDIMM (Non-ECC+ECC), max. 256GB | max. DDR5-7600 |
| Features | Audio+solid capacitors, integrated I/O shield, white build compatible (PCB primary black), 1x M.2 passive cooler |
| RAM Type | DDR5 |
| Socket | AM5 |
| Motherboard Form Factor | ATX |
| Free Shipping | No |
