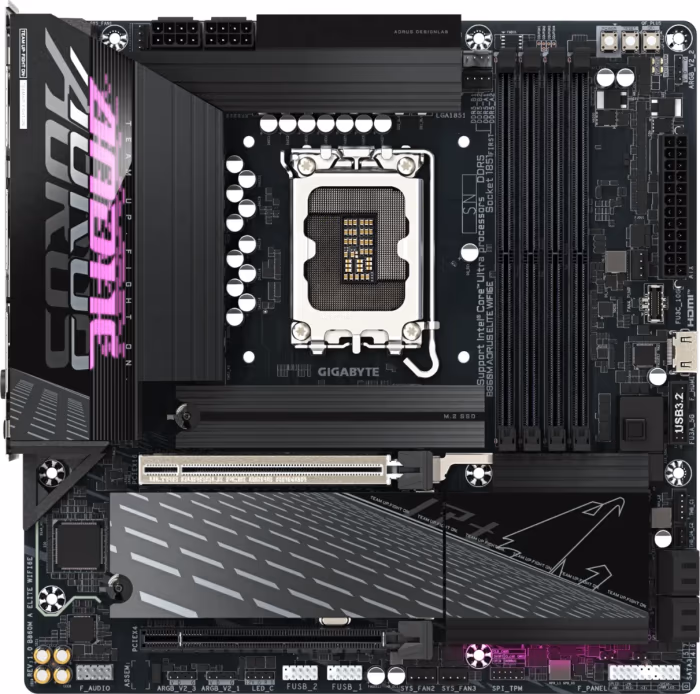

GIGABYTE B860M AORUS Elite WIFI6E Motherboard
Out of stock
SKU
B860M A ELITE WIFI6E
| Full technical specification | |
|---|---|
| Chipset | Intel B860 |
| Part Number | B860M A ELITE WIFI6E |
| Interfaces & Connections | 1x DisplayPort 2.1 (iGPU), 1x HDMI 2.1 (HDCP 2.3, iGPU), 1x USB4 with DisplayPort 2.1 (40Gb/s, iGPU), 2x USB-A 3.1 (10Gb/s), 4x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 1x toslink S/PDIF Out (Realtek ALC897), 2x 3.5mm jack (Realtek ALC897), 1x RJ-4 |
| Expansion Slots Total | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4) |
| Networking Type | Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2), Bluetooth 5.3 | 1 x Realtek RTL8125BG (2.5Gb/s) |
| Audio | Realtek ALC897.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playbacking, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| RAM Max Size | 256 |
| Service & Support Type | 4x DDR5 DIMM, Dual Channel, UDIMM (Non-ECC)/CUDIMM, max. 256GB (UDIMM), 256GB (CUDIMM), Max. DDR5-9200 |
| Features | White PCB, audio+solid capacitors, Diagnostic LED (LED indicators), I/O-shield integrated, 3x M.2-passive cooler |
| RAM Type | DDR5 |
| Socket | Socket 1851 |
| Motherboard Form Factor | Micro ATX |
| Free Shipping | No |
