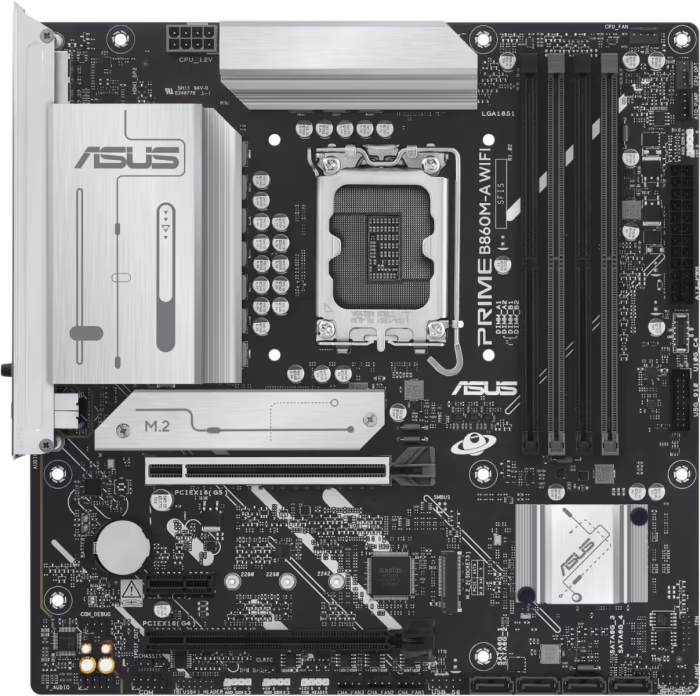

ASUS Prime B860M-A WIFI-CSM Motherboard
In stock
SKU
PRIME B860M-A WIFI-CSM
| Full technical specification | |
|---|---|
| Chipset | Intel B860 |
| Part Number | PRIME B860M-A WIFI-CSM |
| Interfaces & Connections | 2x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/s), 1x USB-A 3.1 (10Gb/s), 2x USB-A 3.0 (5Gb/s), 4x USB-A 2.0 (480Mb/s), 3x 3.5mm jack (Realtek), 1x RJ-45 (2.5GBase-T, Realtek), 2x antenna |
| Expansion Slots Total | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 4.0 x1 |
| Networking Type | Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, MediaTek MT7922), Bluetooth 5.3 | 1 x Realtek (2.5Gb/s) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playbacking, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| RAM Max Size | 256 |
| Service & Support Type | 4x DDR5 DIMM, Dual Channel, UDIMM (Non-ECC)/CUDIMM, max. 256GB (UDIMM), 256GB (CUDIMM), Max. DDR5-8066 |
| Features | audio+solid capacitors, I/O-shield integrated, white Build compatible (PCB primary black), 1x M.2-passive cooler |
| RAM Type | DDR5 |
| Socket | Socket 1851 |
| Motherboard Form Factor | Micro ATX |
| Free Shipping | No |
