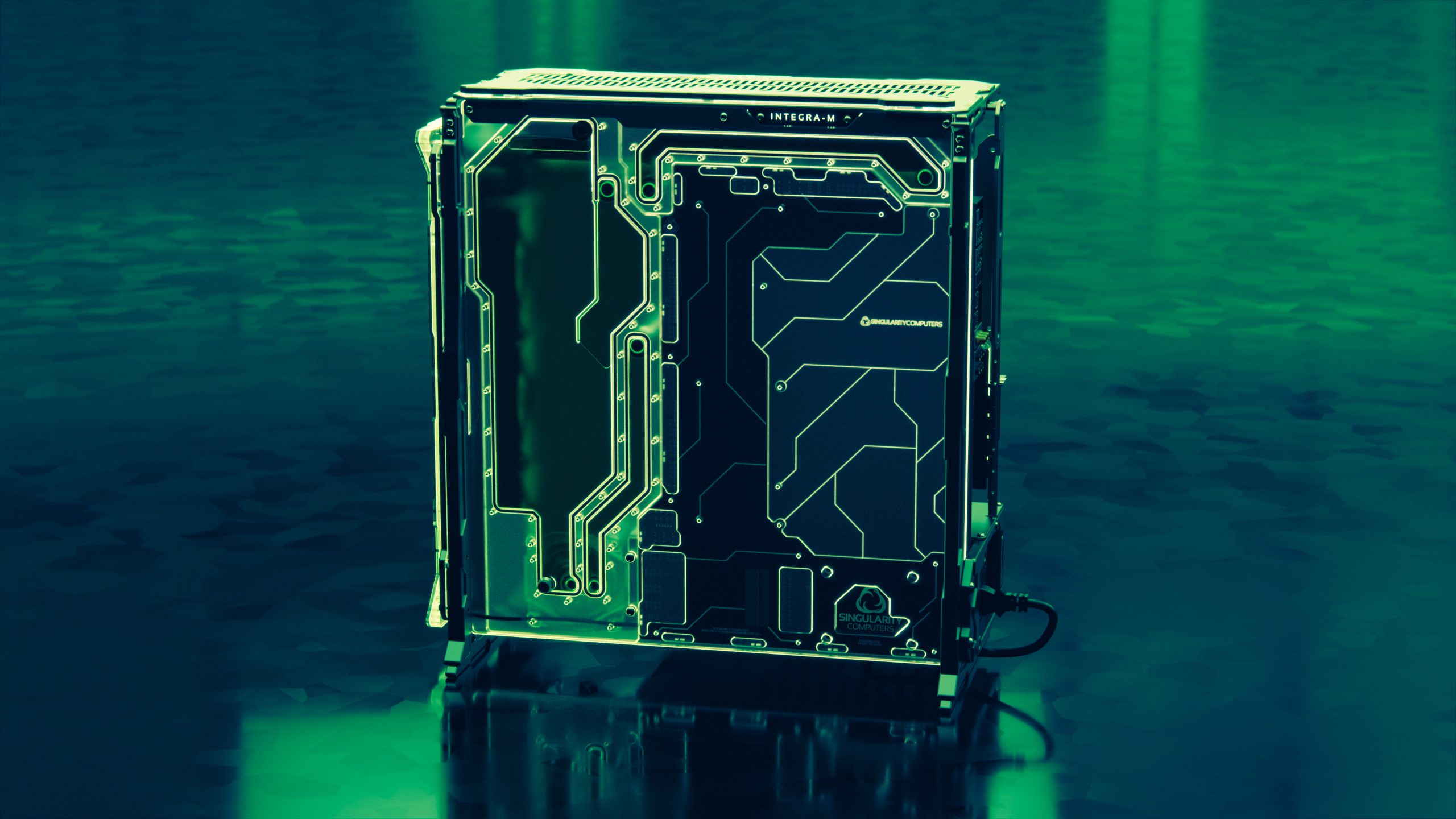

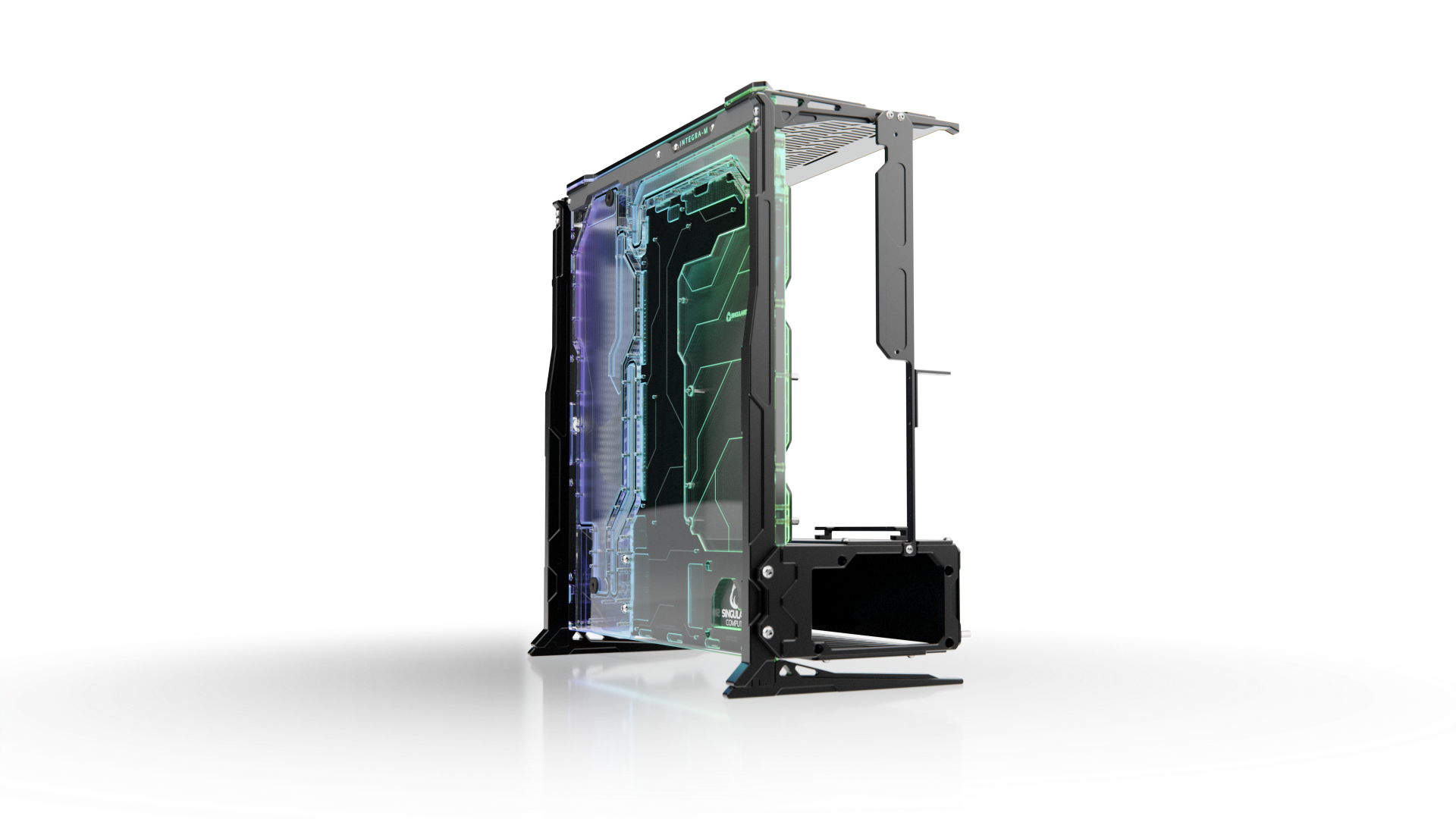

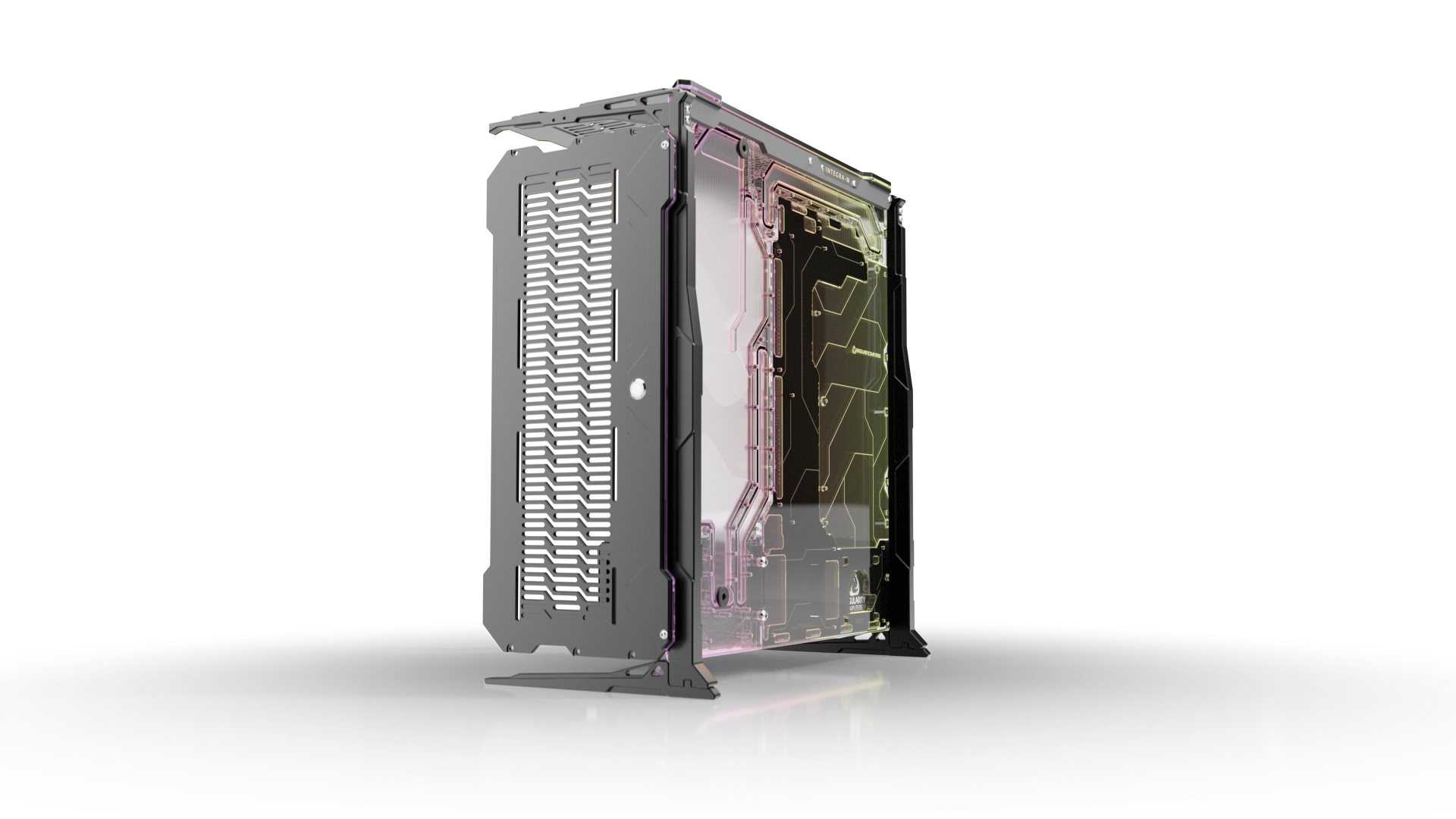

Spectre 3.0 Integra-M is a more compact ATX version of Spectre. It is a full re-design using everything we have learned from the development of Spectre which has continued since 2015. Integra-M is 25% smaller than Spectre 3.0 (all versions) but maintains all the features, except that it fits ATX motherboards and two 360mm radiators which are 40mm thick. Integra-M has a large part of the water-cooling loop integrated with a completely new distribution plate design. It has a fully integrated solution for cables with the Singularity Computers PowerBoard. Previously we have created PowerBoards for existing cases, but for Integra-M we have developed the PowerBoard and case together. This means that both have become far more streamlined, meaning more features and compatibility. The PowerBoard supports the most high-end components and includes two of the new 12VHPWR connectors along with x3 8pin PCIE connectors. It has built in filter capacitors, 24 integrated ARGB and UV LEDs facing inwards and outwards, integrated direct connect SATA, power, and reset buttons, and a touch activated power button. There is no rear access needed to the case for cable management, all cables can be connected from the front and little to no cable management is needed. Black sleeved linking cables are included with the case. Custom colored sleeved linking cables can be purchased separately.
It has a fully integrated solution/replacement for cables with the Singularity Computers PowerBoard
Introducing the invoative PowerBoard. A completely new take on computer cables and cable management.

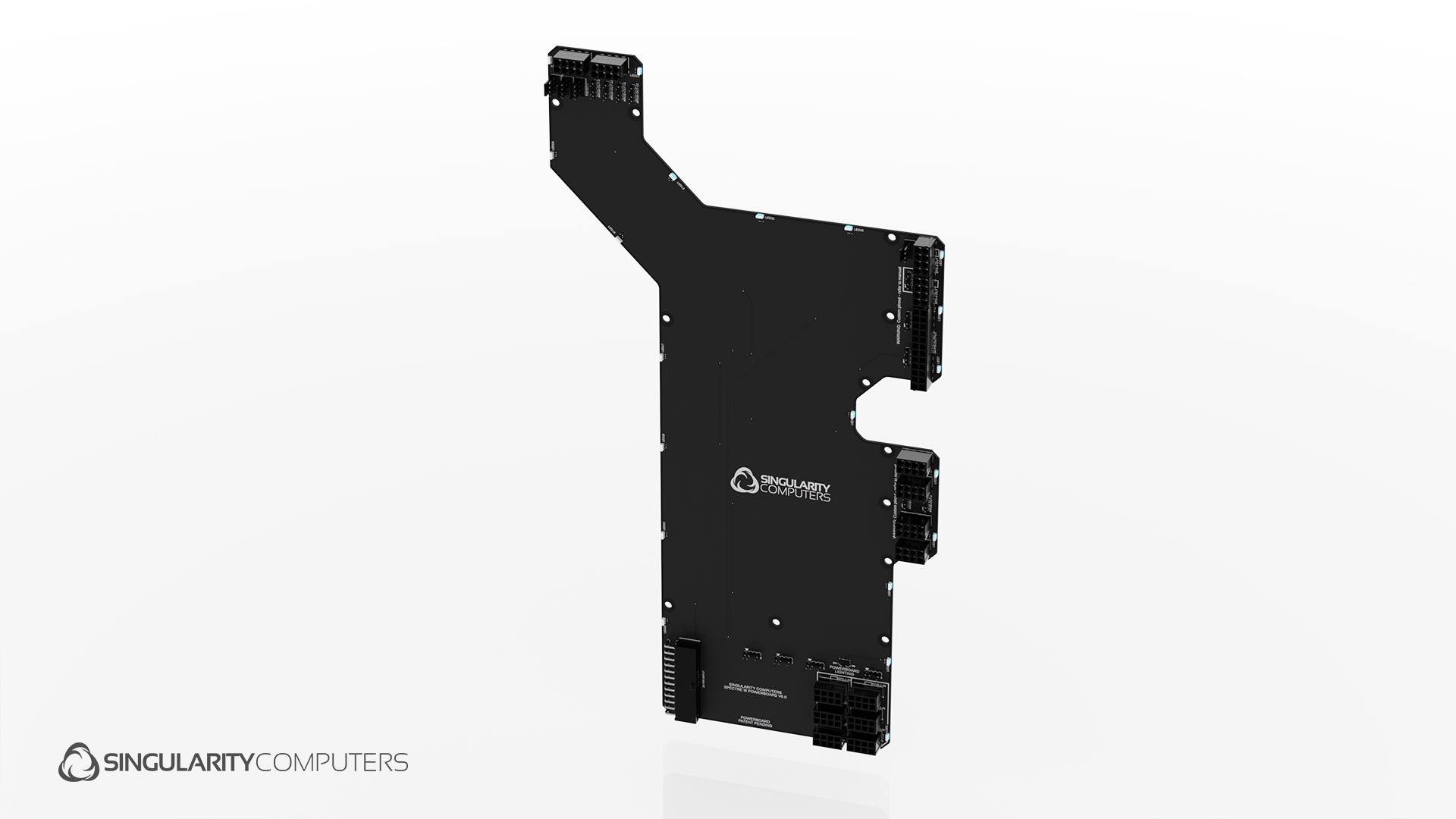

The PowerBoard is a PCB integrating 24pin, EPS, PCIE and 12VHPWR along with PWM and ARGB Hubs, SATA and Power and Reset Buttons. The Spectre Integra-M PowerBoard also has an integrated touch sensing Power Button. The PowerBoard has x24 ARGB and UV LEDs positioned around the external and internal perimeter to optimally light up the distribution plate. The LEDs can be switched on or off and you can switch between ARGB or UV or have both on at the same time. Essentially the PowerBoard is a distribution plate for cables also integrating other features and functions. It is a new method for cables allowing standardization of cable lengths and making cable management almost unnecessary. Spectre 3.0 Integra-M comes included with a standard set of black sleeved linking cables including 24pin x1, 8pin EPS x2, 8pin PCIE x3 meaning that these cables don’t have to be purchased separately.
Reduced build time due to integration
With the pump, reservoir, fill and drain ports, parts of the water-cooling loop, the core component cables, PWM and ARGB hubs all integrated there is less assembly to be done. Also, less fittings and tube are needed. No cable management for the core component cables thanks to the PowerBoard integration.

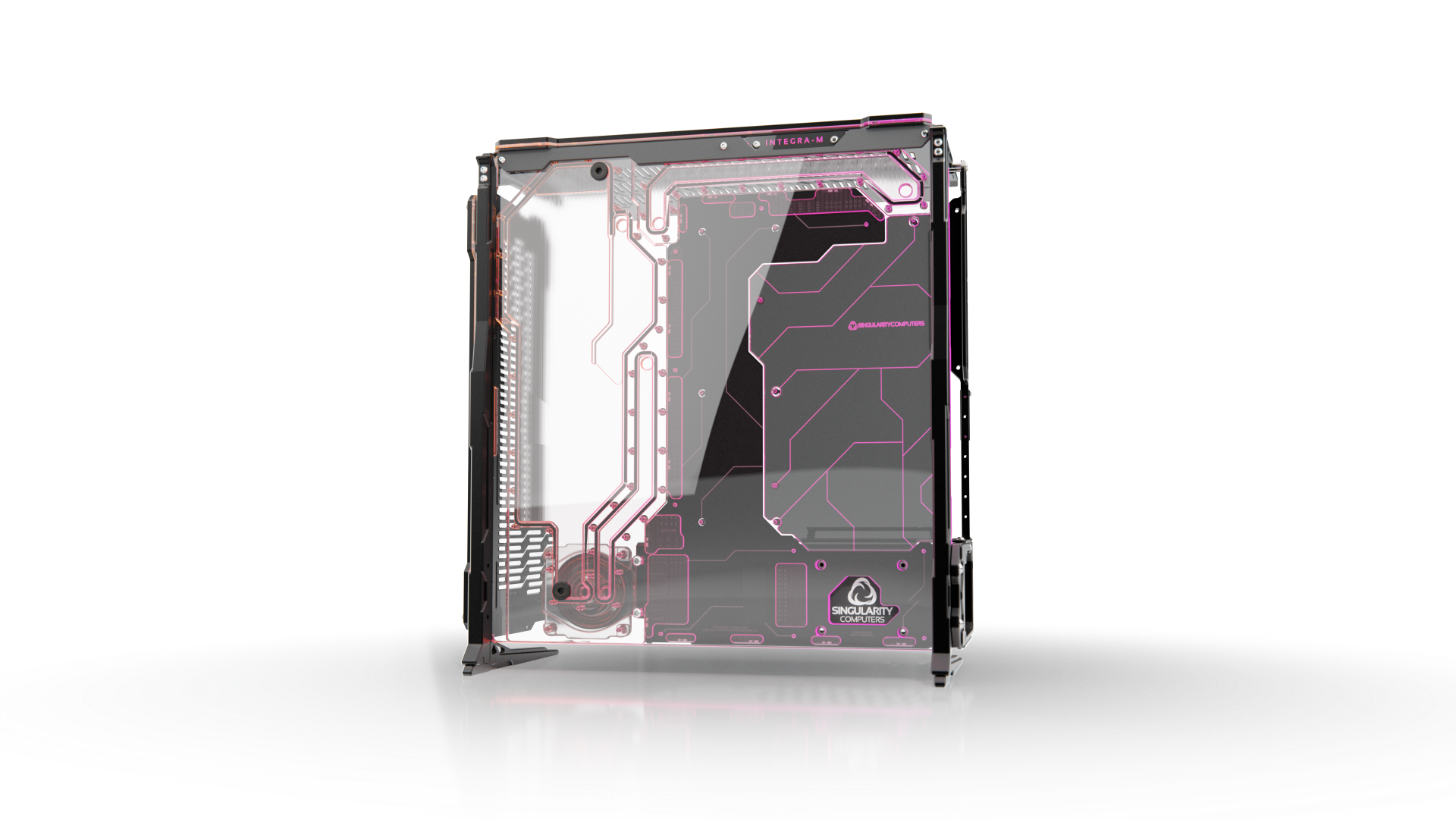

Integration & Optimization

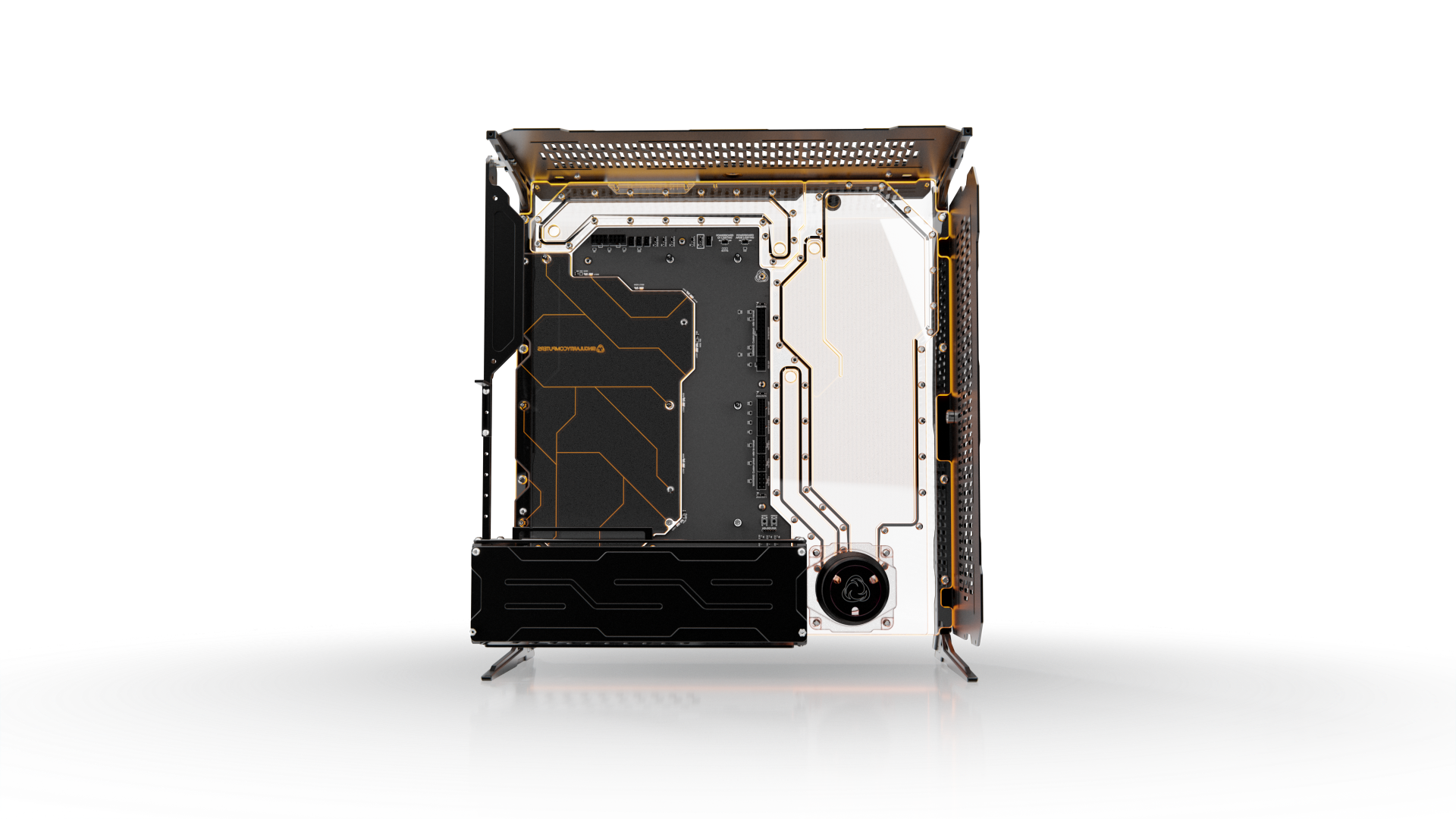

With the integration we did not just develop a case, we also developed all the integrated components. This meant that we could focus more on optimization than would normally be possible. The integrated loop routes in Spectre Integra-M allow for more flow than 16mm tubes. The pump top was designed for the D5 pump, maximizing flow to and from the distribution plate. The reservoir was designed to remove air as quickly as possible making the loop easier to fill. The fill port is at the highest point on the back for the case and the drain point at the lowest point.
High End Components

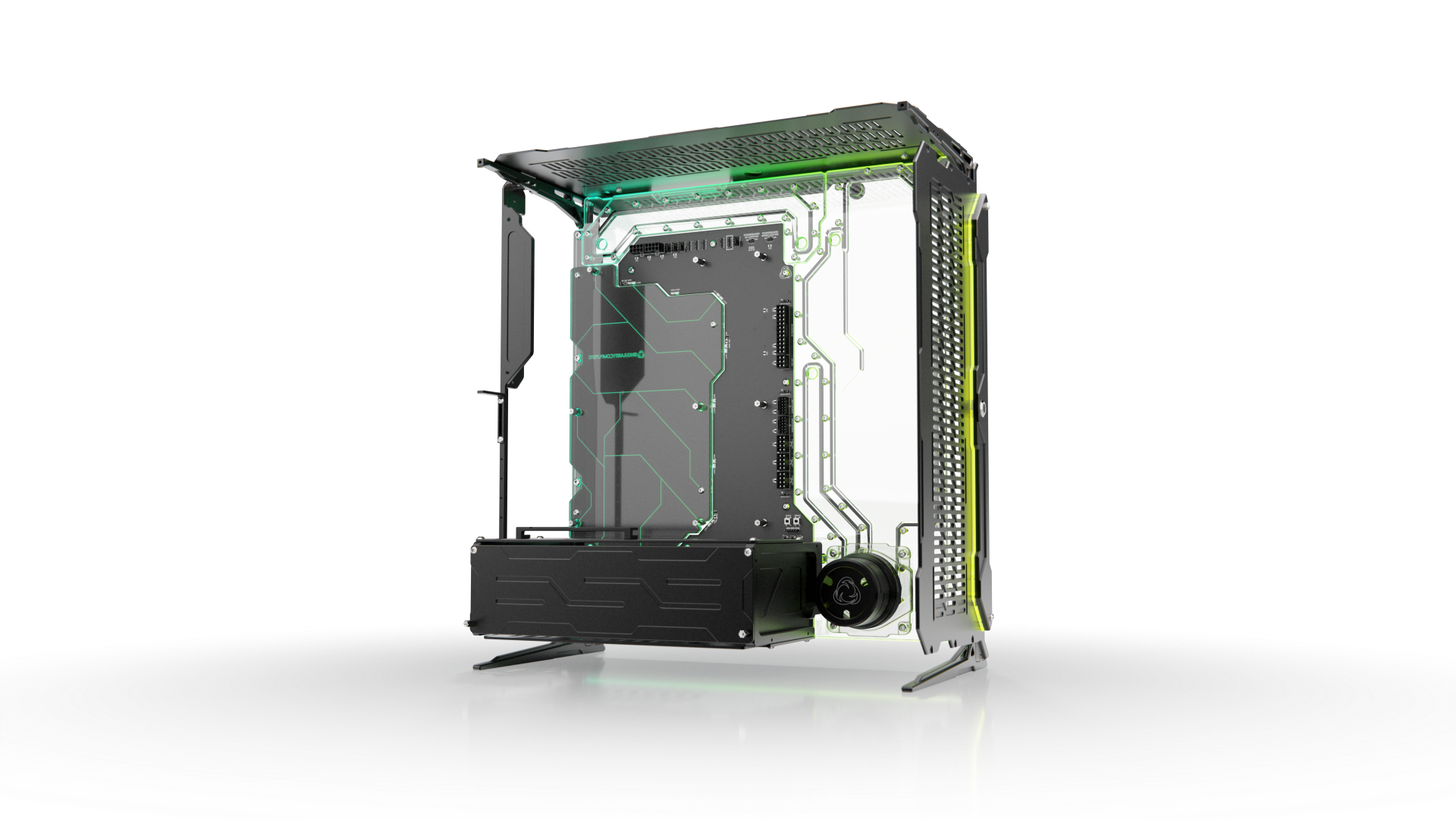

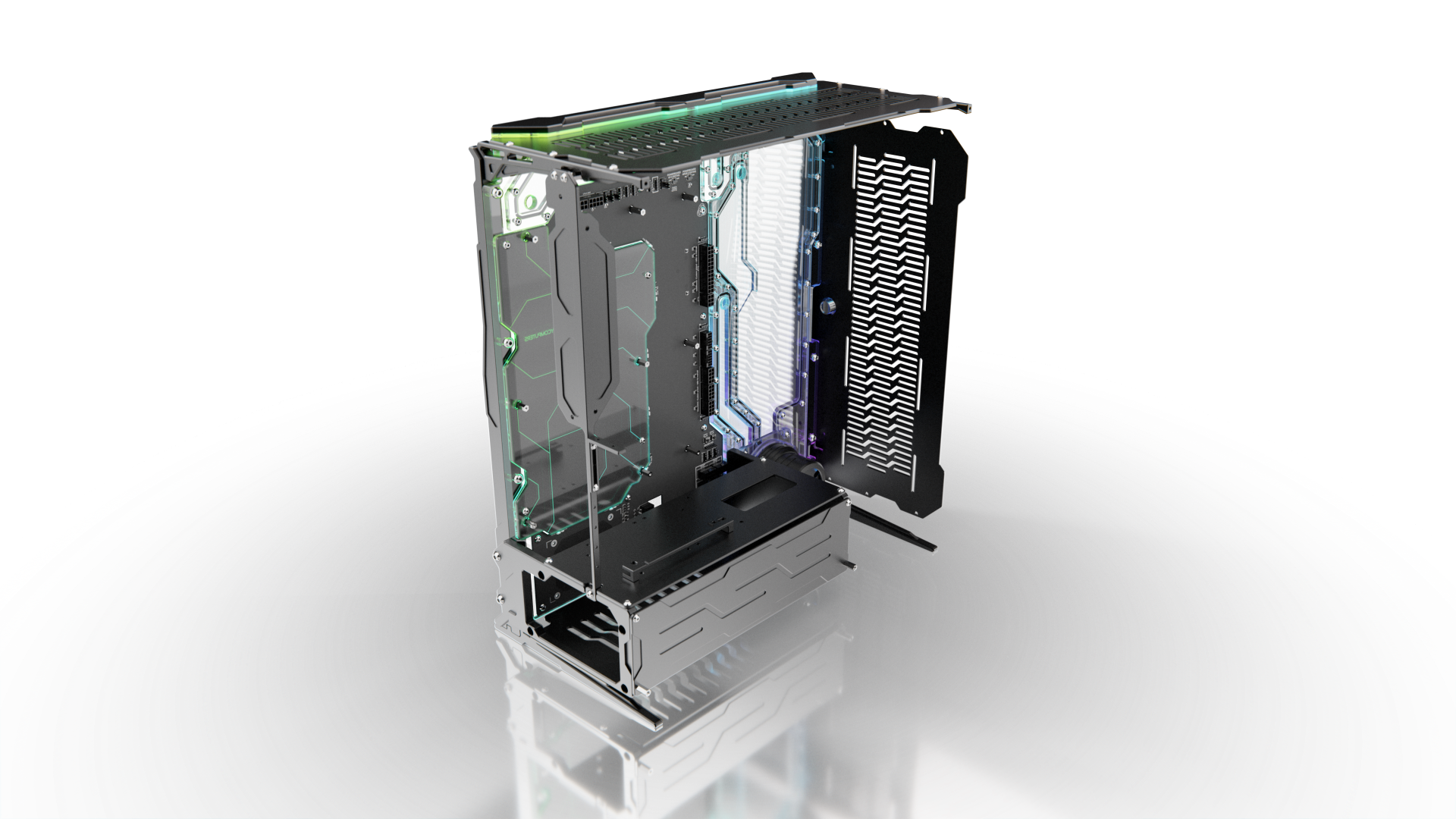

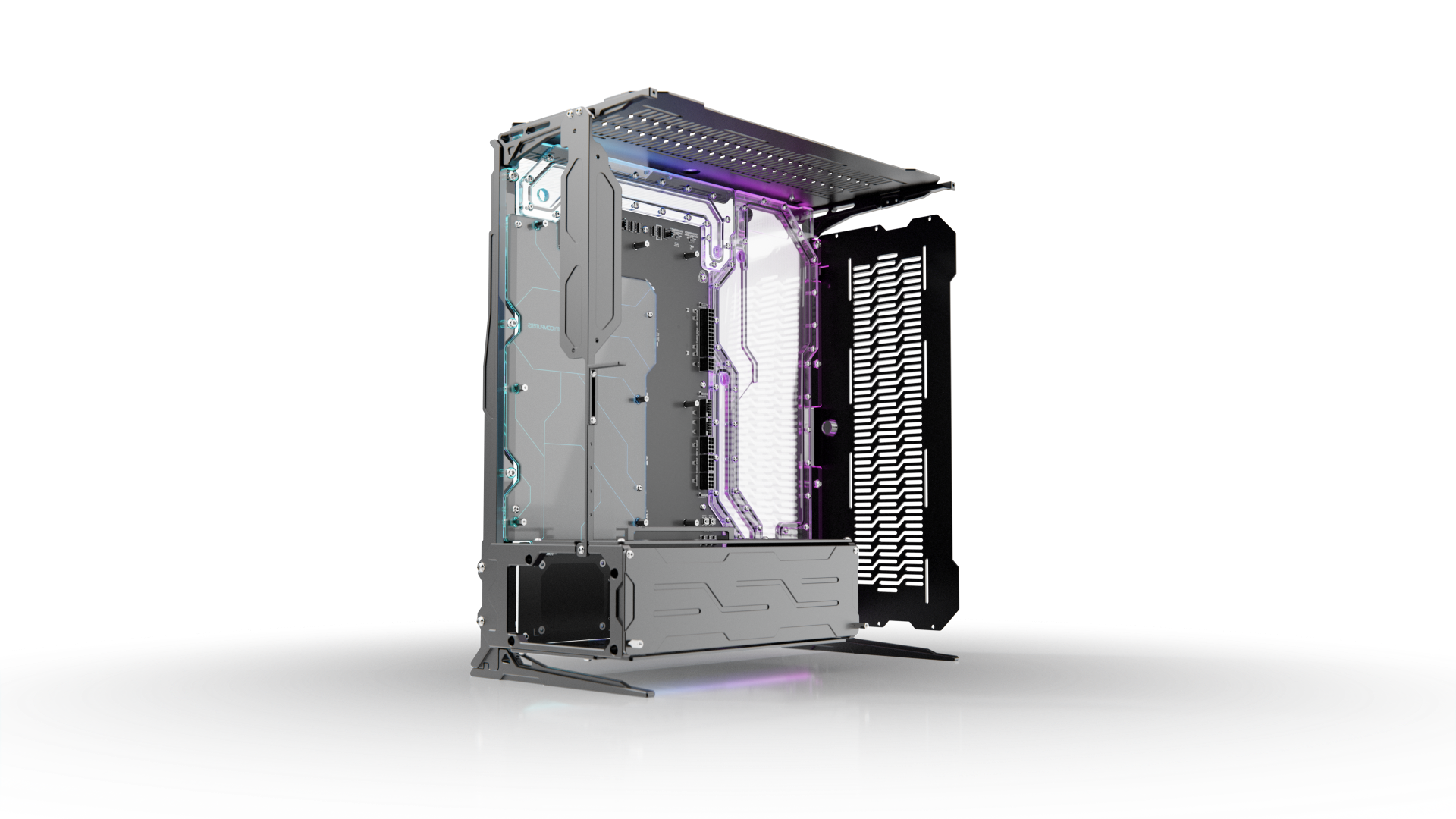

Spectre 3.0 Integra M fits ATX motherboards and has 7 expansion slots. It is designed to fit the largest high-end GPUs. It can fit the largest PSUs up to 220mm. For the water-cooling system it can fit 2x 360mm radiators 45mm thick with a single set of fans and the D5 pump. The PowerBoard can handle the most high-end PSUs and components.
The radiator mounting panels have a large range of adjustment to help with port alignment to the distribution plate.
Spectre Integra-M has 7x 2.5” Drive positions. Two are on the top of the PSU shroud, four inside of the PSU shroud and there is one integrated on the PowerBoard. The two on top of the PSU shroud cannot be used with vertically mounted GPUs.
Extreme PC | The Extreme Machine for Your Digital Worlds.
With thousands more possible configurations than our competitors, we offer you the tools to be creative and design your dream system exactly how you envision it.
FREEDOM | INTELLIGENTLY DESIGNED

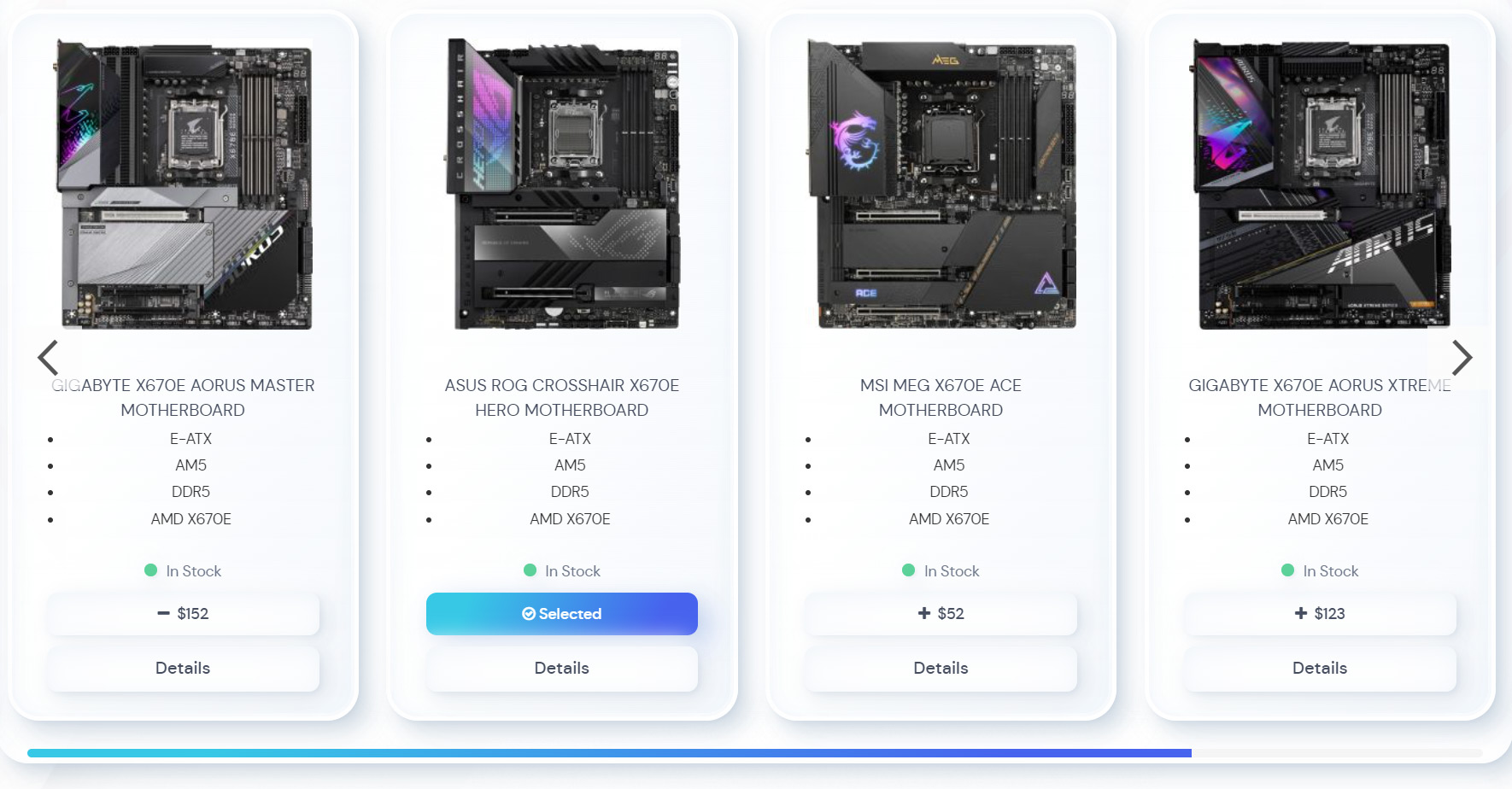

Our configurator design provides you with the ultimate freedom in choosing which components you want in your system.
